Folwell Layout Builder Styles

This component provides a set of Layout Builder styles using the Folwell utility classes.

Example layout

The following layout will be detailed below:

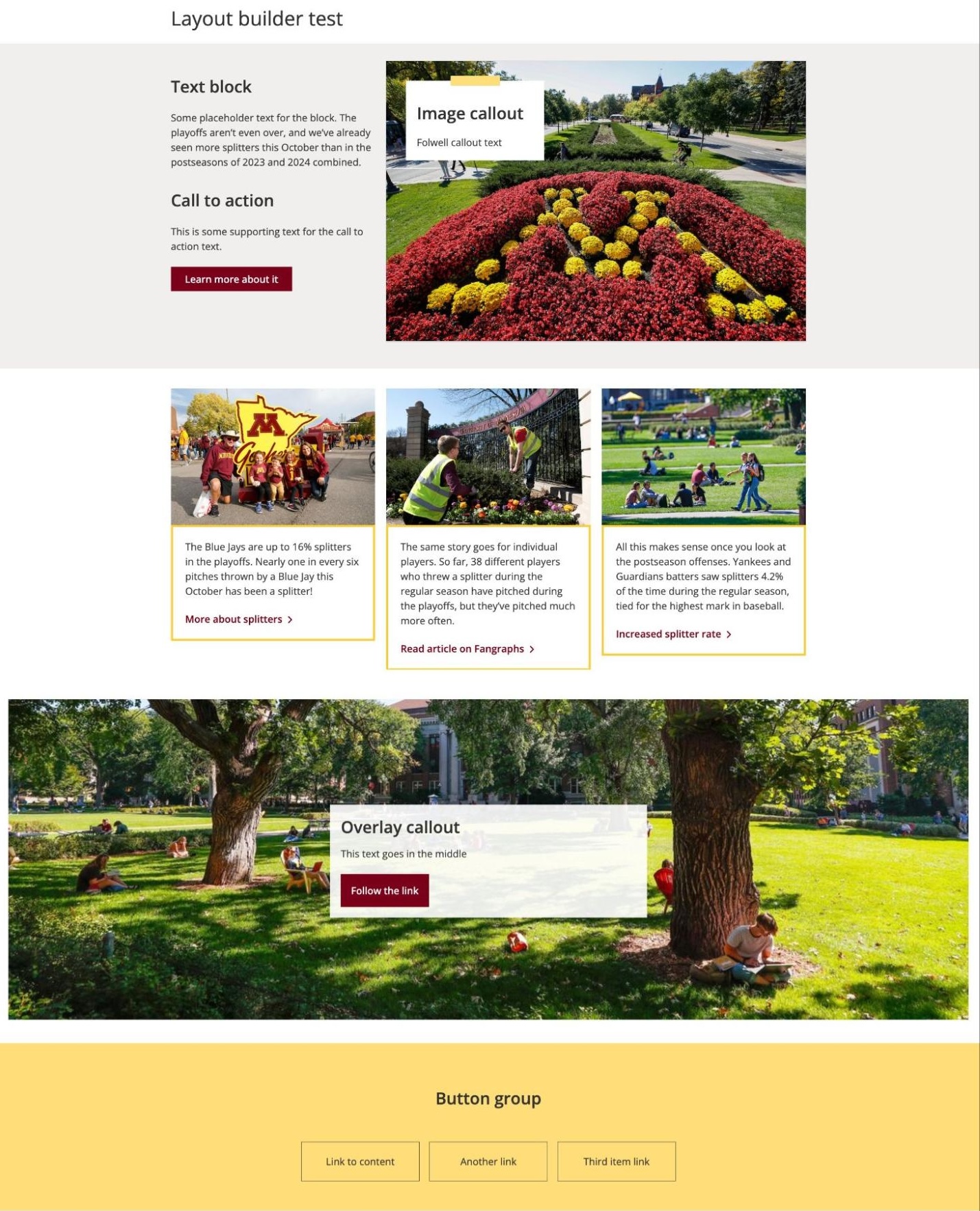

Example Layout having multiple sections and blocks

Section 1: Gray background

Radix Burr layout with Gray background

Layout: Radix Burr

Content width: 1200px

Section background: Gray - lighter

Section width: Full-width

Column 1:

  • Text block
  • Text block

Column 2:

  • Folwell image callout
    • Overlay gold bar
    • Position: top left

Section 2: Three callouts

Brown Layout with three Folwell image callouts

Layout: Brown

Section margin: Margin-top - 2

Content:

  • Three Folwell image callouts
    • Gold border

Section 3: Full-width callout

Boxton Layout with Folwell overlay slideshow and overlay position at middle

Layout: Boxton

Content width: none

Section margin: Margin-top - 2

Section width: full-width

Content:

  • Folwell overlay slideshow
    • Overlay position: middle

Section 4: Button group

Boxton Layout with Folwell Button group in gold light background

Layout: Boxton

Content width: 1200px

Section background: Gold - light

Section margin: Margin-top - 2

Section width: full-width

Content:

  • Folwell button group
    • Three buttons
    • Background: gold
Usage

Access Layout Builder

On a content type or page using Layout Builder, click the Layout link:

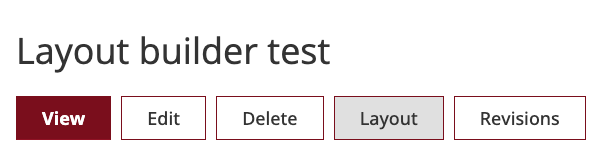

View, Edit, Delete, Layout and Revisions options from the dashboard and Layout option is highlighted

Now you should see the page broken into sections and blocks (if you already have content on the page).

This is an example of a blank page in Layout Builder mode:

A blank page in Layout Builder mode showing sections and blocks

Key Layout Builder concept: Section vs Block

In Layout Builder, a Section contains regions where content can be placed. They can be single-column layouts, or more complex.

A Block is a piece of content, it can be a Folwell component, View, Field…etc. The Block is placed inside a Section, but can also be dragged-and-dropped into other sections once created.

In the example below, the blank page has three Sections using Radix layouts of increasing complexity:

  • Boxton (single-column)
  • Burr (two-column)
  • Brown (multi-column and multi-row)
A blank page has three sections using radix layouts of increasing complexity

Using the new Folwell Layout Builder Styles module, each section can be customized when it is added, or by clicking on the Configure [section name] link.

Section layout and style options

Click on the Configure [section name] link to see the new customization options.

Boxton Layout configuration

They will appear on the right side of the screen:

Boxton Layout Configuration with options

Section styles

Content width

Allows you to set the width of the content within the section. This constrains all the content of the layout (even if it has multiple columns, and rows), and centers it horizontally.

Options:

  • None
  • 760px
  • 900px
  • 1200px

Section background

This setting applies a background color to the section.

Options:

  • None
  • Maroon
  • Gray - lighter
  • Gray - light
  • Gold - light
  • Gold

Section border

This will apply a solid 1px, dark-gray (#333 hex color) border to the section in various ways.

Options:

  • None
  • Border - all sides
  • Border - bottom
  • Border - bottom

Section margin

These options will apply margin outside the section, creating space between other sections

Options:

  • None
  • Margin top - 2 (2em)
  • Margin bottom - 2 (2em)

Section padding

These options will add padding inside the section to create space.

Options:

  • None
  • Padding - small (0.5 em)
  • Padding - 1 (1em)
  • Padding - 2 (2em)

Section shadow

These options will add drop-shadow to the section.

Options

  • None
  • Shadow - subtle
  • Shadow - page
  • Shadow - emboss
  • Shadow - close

Section width

These options allow the section to go edge-to-edge, breaking out of the 1200px width of the normal content.

Options

  • None
  • Full-width

Block styles

In Layout Builder, each individual Block can be customized using Layout Builder Styles.

To edit the options on a Block, click the Options button in the top right corner and choose Configure:

Options to configure the Folwell Callout component
Configuration options to configure, move and remove the block

Block background

This will apply a background color to the block.

Note - this may not work if the component has a built-in background color.

Options:

  • None
  • Gold - light
  • Maroon - light
  • Gray-lighter

Block border

  • None
  • Border - all sides
  • Border - bottom
  • Border - bottom

Block margin

This will add margin to the outside of the Block.

Options:

  • None
  • Margin-top - 2em
  • Margin-top - 1em
  • Margin-bottom - 1em
  • Margin-bottom - 2em

Block padding

These options will add padding inside the block to create space.

Options:

  • None
  • Padding - small (0.5 em)
  • Padding - 1 (1em)
  • Padding - 2 (2em)

Block shadow

These options will add drop-shadow to the section.

Options

  • None
  • Shadow - subtle
  • Shadow - page
  • Shadow - emboss
  • Shadow - close
